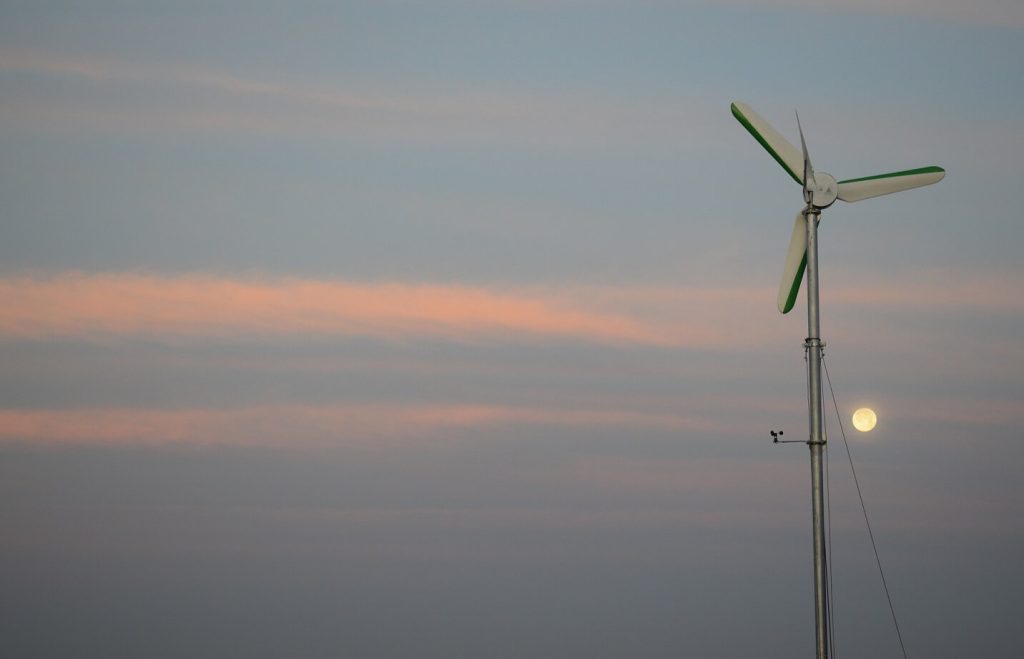

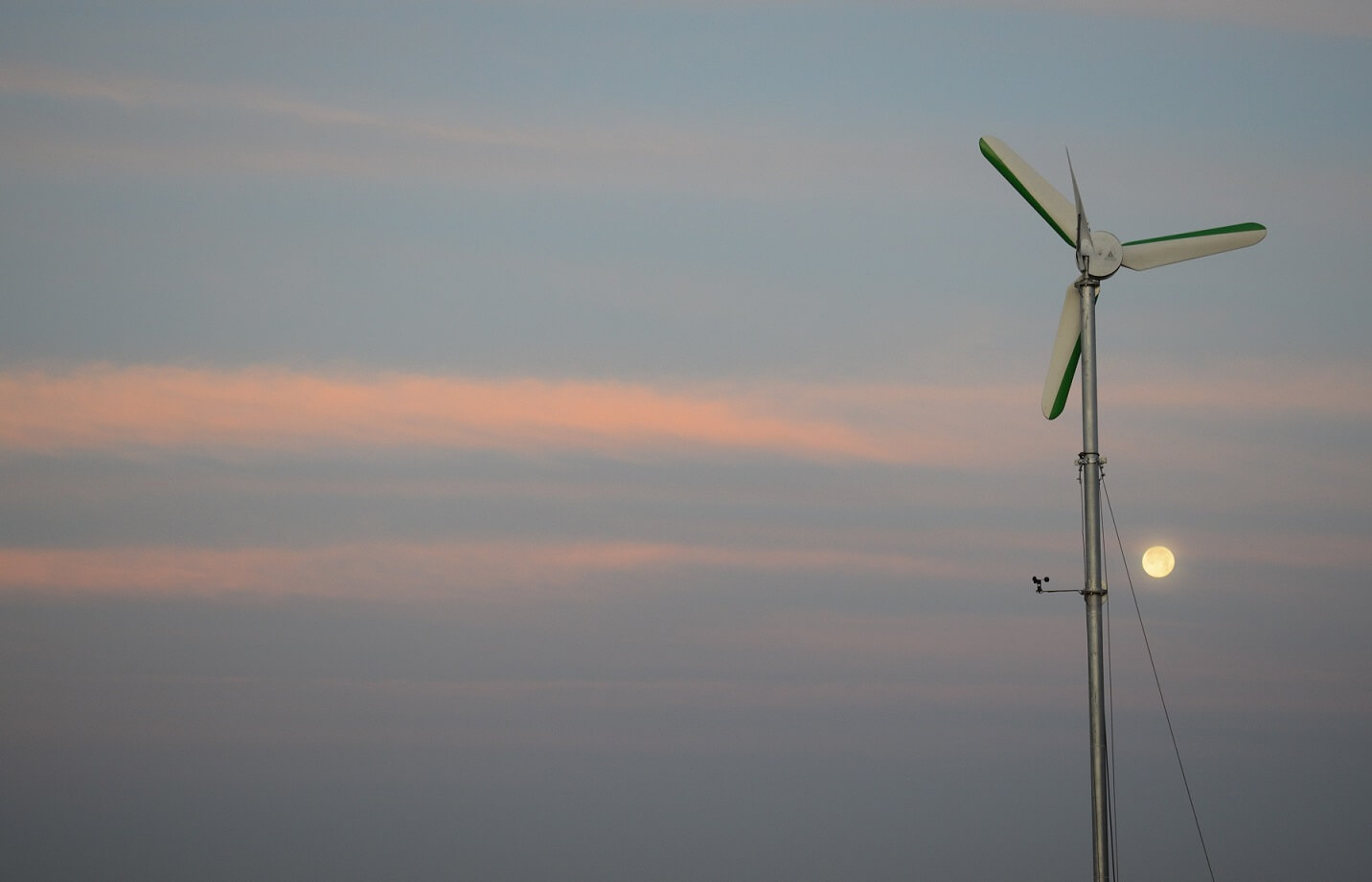

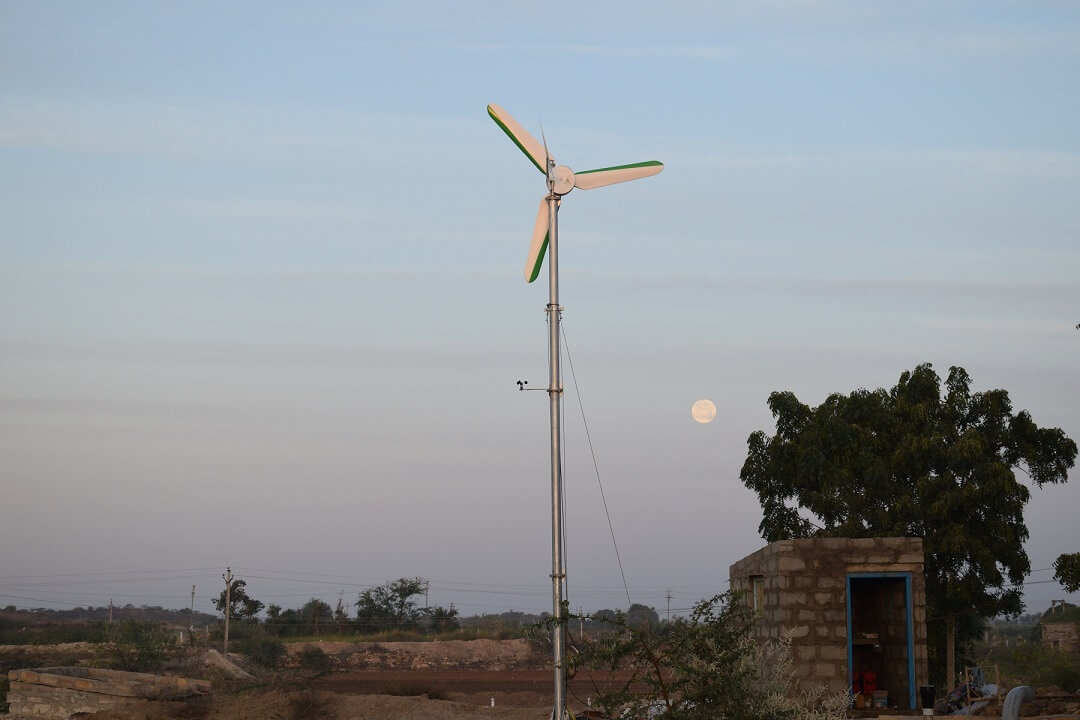

AVATAR™-V’ is a Multi-Phase, Multi-Voltage, Brush-less, Water-Proof Generator with FRG housing and Tale Vane with Auto Direction Positioning. The products can be used for electrification needs for homes, offices, agriculture, telecom towers, urban/rural electrification, smart cities and in many more areas. These wind turbines are built to perform in diverse weather conditions ranging from marine, snow, desert etc.
MODEL
AVATAR™-V
CAPACITY
5 kW equivalent, Multi Phase, Multi Voltage System
MAKE AND MODEL
AVATAR™-V
SYSTEM VOLTAGES
48V, 230V
AXIS
Horizontal
PEAK POWER
5000W
STARTUP WIND SPEED
2 m/s
CUT IN WIND SPEED
2.5 m/s
SURVIVAL WIND SPEED
60 m/s
DAILY kWh AT 5.5 m/s
25 kWh
BLADE MATERIAL AND NO. OF BLADES
FRP Material & Three Blades
ROTOR DIAMETER
16 feet
GENERATOR
Brush Less, Gear Less PMG with high performance Neodymium Magnets
DRIVE SYSTEM
Direct Drive
CONNECTION OF GENERATOR
Slip- ring less
TURBINE WEIGHT
VOLTAGE CONTROLLER
Auto Electronics
SOUND
Not more than 10 % of the wind speed at foundation level
OVER SPEED PROTECTION
Dump switch manual and Auto Furling Tail
WARRANTY
2 Years
OPERATION LIFE
20 Years
Note: To perform a wind production calculation, it is necessary to consider multiple factors such as Weibull values, air density, altitude, wind directions, soil roughness factor, surrounding topography, temperature, etc. Change in Yawing system may show the change in power values.
All data is subject to 10-20% variations according to the effects of various weather and topographical factors as mentioned above
Design registration is currently pending for AVATAR™ Wind Turbine.
Contact us for the latest price.
System Volt : 48V/230V
System Type : Off Grid and On Grid
Daily generation : 5 kWh at mean wind speeds of 5.5 m/s
Warranty : 2 years
Operational life : Minimum 20 yrs
Dispatch : Within 60 days of order placement
Price :
